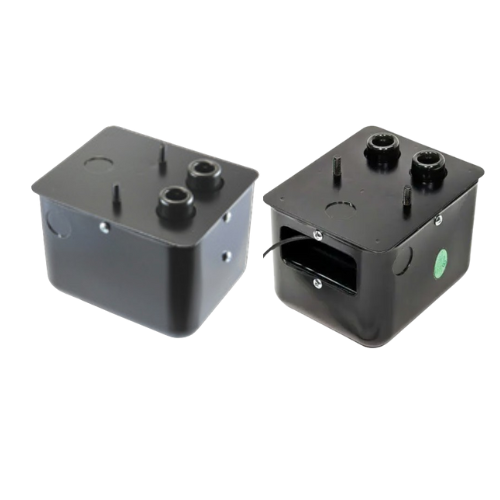

The Allanson 421-655-G is a replacement part ferromagnetic ignition transformer for Power Flame Burners. The unit's power rating is 120Vac primary voltage and a 10,000Vac secondary voltage. Additionally, it has 1/4-20 x 1” mounting studs, primary with three wires, and one ground wire.
It is a mid-point grounded transformer wherein a neutral or ground point is established at the midpoint of a circuit. This is a CSA-approved transformer.
The 421-655-G replaces Webster 312-25AB0418 Transformer.
| Primary Voltage | 120Vac |
|---|---|
| Secondary Voltage | 10,000Vac |
| mA Rating | 23mA |
| Hertz | 60Hz |
| Color | Black |
| Application | Power Flame Burners |
| Approval | CSA |
Download Product Information:
Allanson 421 Series Transformers Product Catalog
Allanson 421 Series Ferromagnetic Transformers Specification Sheet
